Pilot high temperature solenoid valve
B11HC Pilot high temperature solenoid valve
B41DP pilot piston solenoid valve is widely used in military, aerospace, shipbuilding, nuclear industry, petrochemical, electric power, chemical, light industry, machinery, scientific research, industrial furnace, drying equipment, boiler, water supply and drainage, air conditioning, fire protection, food and medical, Cleaning equipment, pipeline media automation and other fields.
Quality
Price
Fast
- Complete solenoid valve solution
- Salse：+86-577-86989863 13456060066
- Fax：+86-577-86920866
- Service：+86-577-86926655 85857018
- Summary
- Model
- Parameter
Application
B41DP pilot piston solenoid valve is widely used in military, aerospace, shipbuilding, nuclear industry, petrochemical, electric power, chemical, light industry, machinery, scientific research, industrial furnace, drying equipment, boiler, water supply and drainage, air conditioning, fire protection, food and medical, Cleaning equipment, pipeline media automation and other fields.
Features
Precision casting, beautiful appearance; pilot-type piston structure, stable performance; good sealing, fast switch; auto-made coil, not easy to burn;
Principle
Normally closed: When the coil is energized, the electromagnet core is sucked, the pressure relief hole is opened, the main piston is pushed by the medium pressure, the main valve port is opened, and the medium is circulated. When the coil is de-energized, the main valve port is closed and the medium is cut off.
Normally open: When the coil is energized, the electromagnet core is sucked, the pressure relief hole is closed, the main piston is pushed by the medium pressure, the main valve port is closed, and the medium is cut off. When the coil is de-energized, the main valve port opens and the medium circulates.

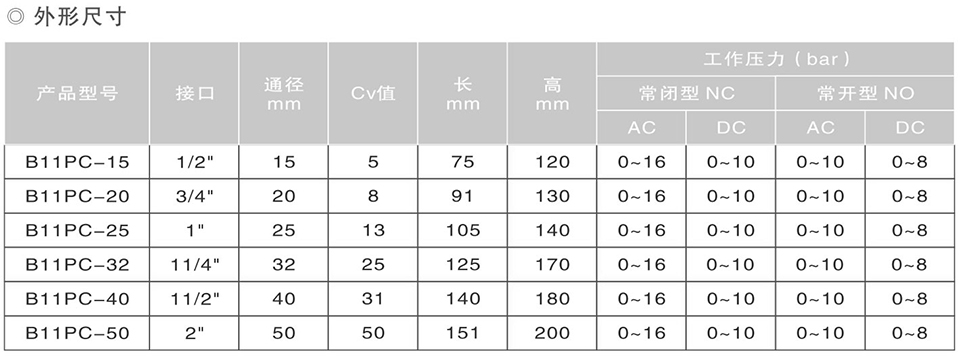

Parameter
Power supply voltage: DC12~220V; AC24~380V.
Body material: stainless steel, SS304, SS316, SS316L.
Pressure range: 0~6.4MPa
Temperature range: (-200, -50) ~ (+180, +250, +380) °C
Medium viscosity: less than 50CSt (more than custom).
Protective performance: dustproof, waterproof and explosion-proof. Choose according to working conditions
Wiring method: terminal block type, lead type, plug type.
Connection method: flange, welding, internal thread (external thread and special interface can be customized or twisted).
